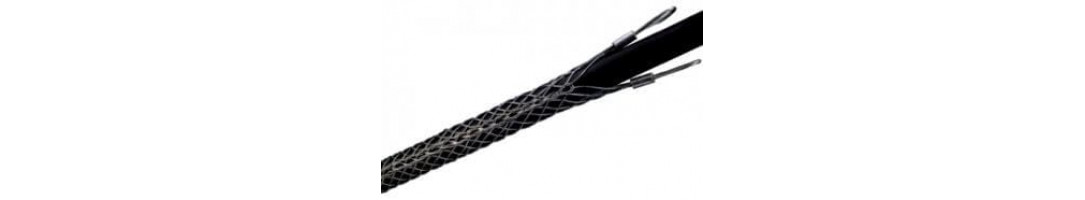

As the name suggests, this type of wire rope sock can be affixed to a cable bundle by literally lacing it around the outer surface, without having to pull it on at one end and slide it up the cable. This lace up cable sock is just one of the examples in our light to medium duty range of socks.
These lace up wire rope cable socks can be specified across a range of sizes, lattice types, lengths and load limits.
Single weave options are for the lower sizes and range from 610kg to 3.5 tonnes in term of breaking load, while double weave examples are for the larger sizes and rise up to 7.1 tonnes in this respect. Our heavy duty range of socks provides even greater pulling power.
The excellent wire rope products we stock here at Rope Services Direct can be purchased by calling 01384 78004 and chatting to our sales team. To get in touch via email, visit our contact page where you will find further details.
| Size range (mm) | Lattice weave | Lattice length (mm) | Overall length (mm) | Approx breaking strength (kg) |
| 10 – 13 | Single | 230 | 305 | 760 |
| 13 – 19 | Single | 355 | 430 | 1,015 |
| 19 – 25 | Single | 405 | 510 | 2,540 |
| 25 – 38 | Single | 455 | 610 | 3,555 |
| 38 – 50 | Double | 535 | 735 | 5,080 |
| 50 – 63 | Double | 610 | 865 | 5,080 |
| 63 – 89 | Double | 685 | 990 | 6,095 |
| 89 – 115 | Double | 685 | 990 | 7,110 |
| 115 – 140 | Double | 685 | 990 | 7,110 |
