Our galvanized wire rope range is extensive and loaded with different products, including this 11mm example of the popular 1x19 construction configuration. Get the lowdown on what this 11mm 1x19 Galvanized wire rope can do right here, then contact us for a quote.

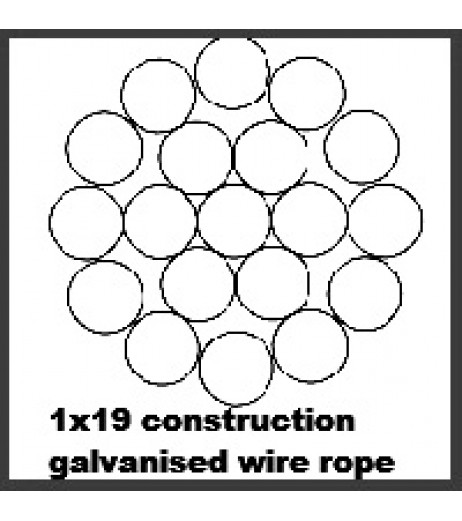

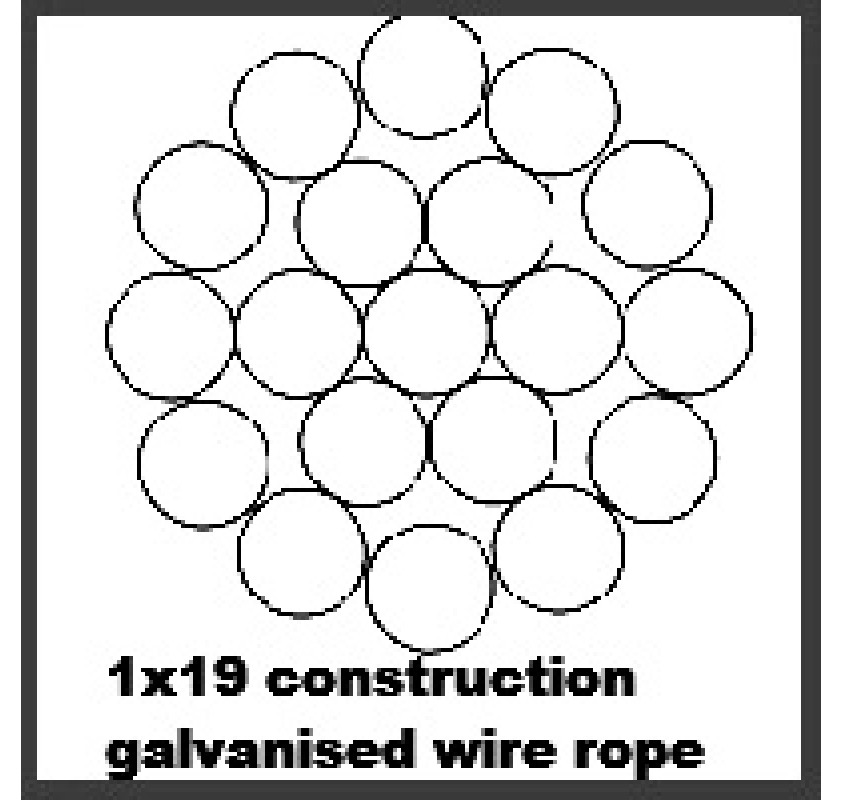

A lot of the specifications of a wire rope are wrapped up in its strand structure. With the 1x19 arrangement of galvanized wires that come together to form this 11mm rope, you get load limits of 12,692kg and breaking force ratings of 124.5kN.
Because the strands are organised in a fairly straightforward way, you can also expect a good deal of stretch resistance. This rope will be tough to break and will thus survive longer in standard use scenarios.
The galvanizing of the wires makes them able to avoid becoming corroded by rain, salt water and generally moist environments. From marine use to architectural deployment, such benefits will be a big selling point.
| Tensile Strength | 1770 | 1960 | |||
| Breaking Strength | |||||
| Diameter | KG/100M | kN | KG | Kn | KG |
| 11 | 59.89 | 112.4 | 11,462 | 124.5 | 12,692 |
Rope Services Direct has all the production facilities and equipment required to take a 1x19 galvanised rope and kit it out with components to craft an impactful, totally custom assembly.
Our line up of high quality fittings and our general engineering expertise means that you can ask us to build almost anything using wire rope and we will oblige.
One way to get more product info and place an order is to call 01384 78004 and have a conversation with an RSD sales representative. Another option is to email us with your query. However you will most likely find all the information you need here on our website to enable you to make an informative choice.
