Need one or more standard commercial thimbles? There’s a very good chance you’ll find it right here at RSD. Furthermore, it’s well worth taking a look at our lifting shackles, wire rope pullers and other types of fittings whilst you’re here too.

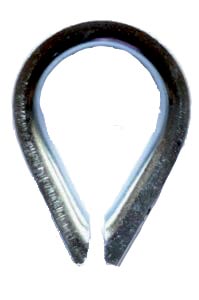

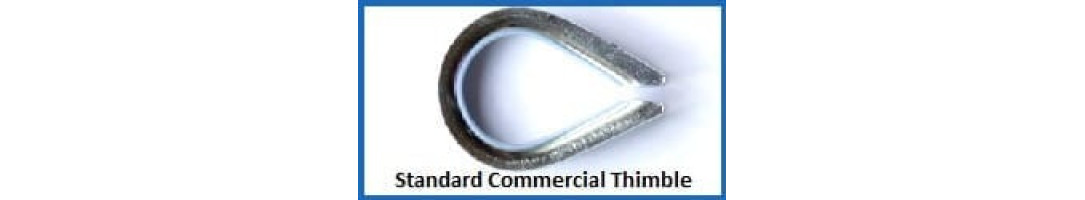

Standard commercial thimbles – adaptable and functional
Our excellent, wallet-friendly range of standard commercial thimbles are perfect for adding structure to the loops on everyday wire ropes. Garden projects and landscaping as well as in leisure boating, sculpture work and art installations can all make good use of these thimbles. Please note, commercial thimbles are only made for static requirements and must never be used in any lifting applications as they are not designed to be load bearing.
Made from weather-resistant marine grade stainless steel, they’re ideal for use in highly corrosive outdoor environments such as in salty sea air and harsh climatic conditions, as they won’t rust or degrade.
Also available in both electro-galvanized and hot dipped galvanized finishes, they come in sizes to perfectly fit rope diameters from 4 mm up to 32 mm.
Go ahead and order your thimble fitting
Thanks to years of knowledge and experience, at Rope Services Direct we offer standard commercial thimbles in a handy range of sizes and designs. To place your order with us, all you need to do is fill in our quick online enquiry form here. If you want to get in touch and ask a question, please feel free to drop our helpful team a call on 01384 78004. We’ll be happy to offer advice and expertise.
Diameter Rope mm | Width Groove mm | Length mm | Width mm | Length Inside mm | Width Inside mm |
4 | 4 | 25 | 19 | 16 | 11 |
5 | 5 | 31 | 22 | 22 | 16 |
6 | 6 | 37 | 29 | 26 | 19 |
8 | 8 | 51 | 38 | 34 | 24 |
10 | 10 | 64 | 44 | 42 | 32 |
12 | 12 | 76 | 57 | 51 | 38 |
16 | 16 | 89 | 64 | 60 | 42 |
20 | 20 | 115 | 79 | 76 | 51 |
22 | 22 | 127 | 89 | 83 | 54 |
24 | 24 | 140 | 102 | 88 | 64 |
26 | 26 | 152 | 105 | 102 | 68 |
28 | 28 | 165 | 115 | 110 | 73 |
30 | 30 | 178 | 121 | 115 | 79 |
32 | 32 | 203 | 133 | 140 | 93 |
