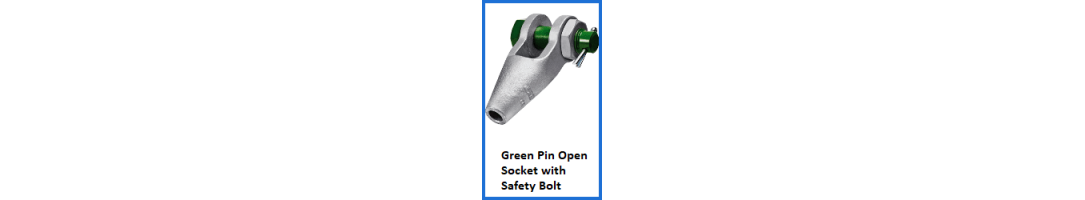

Green Pin Open Socket with Safety Bolt

Rapid Enquiry Form

Completely fed up of searching out the distinct green pin open socket with safety bolt without breaking the bank? Rope Services Direct is here to help with everything you need – we’re ready and waiting for your order and pride ourselves on consistently low prices.

Green pin open socket with safety bolt – resilient and reliable

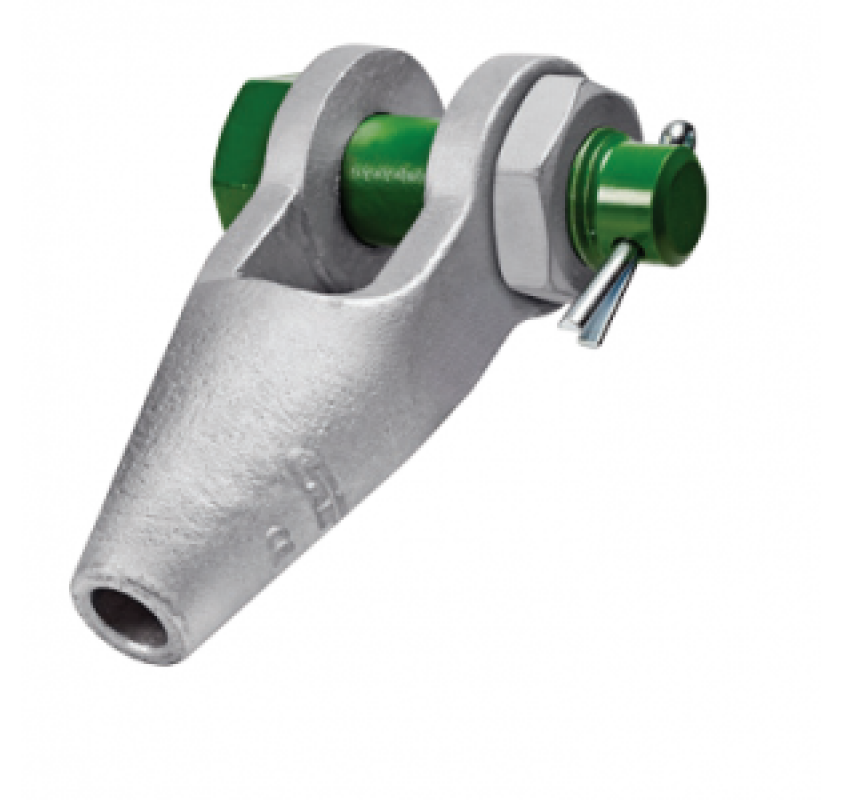

Green pin open socket with safety boltUsed in the marine sector as well as for odd domestic jobs, animal pens, farm work and other outdoor pursuits, these parts are manufactured from high tensile steel for the ultimate in strength. They’re supplied in a galvanised finish they are extremely strong and capable of withstanding extreme temperatures. This type of green pin open socket comes with a security bolt as well as a split pin for optimum security and are designed to be used with our many different wire ropes. The green pin open socket with safety bolt comes in a wide range or sizes with minimum breaking loads ranging from 8 tonnes up to a whopping 170 tonnes.

Still not sure what you’re looking for? You’re not alone! This is a great opportunity to browse through our ferruleswire rope sockets and other rope grips on our website too. Alternatively, feel free to contact our expert staff for information.

Get ordering now!

From our extensive warehouse and workshops in the West Midlands, we are always able to offer all sorts of fittings and parts for domestic, marine and heavy duty purposes exactly as you require them. Simply complete our rapid online enquiry form here to select your item(s) for delivery.

Needing to ask a question? Feel free to drop us a line (01384 78004). We’d be delighted to help.



Minimum Breaking Load tonsDia Wire Rope mmLength mmWidth mmWidth Inside mmDia Pin mmLength Inside mmOpening mm
86-7109621916308.5
128-101247521213412
2011-1314310926253715
2514 – 1617213333304918
4018 – 1920514538355821
5520 – 2223516144416824
7523 – 2627518951507528
9027 – 3030620857578532
12531 – 3633822663639538
15037 – 39394246767012741
17040 – 42418256767712744
