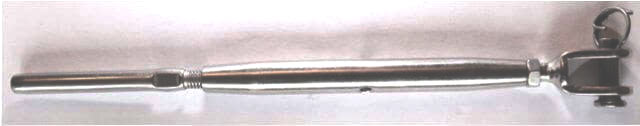

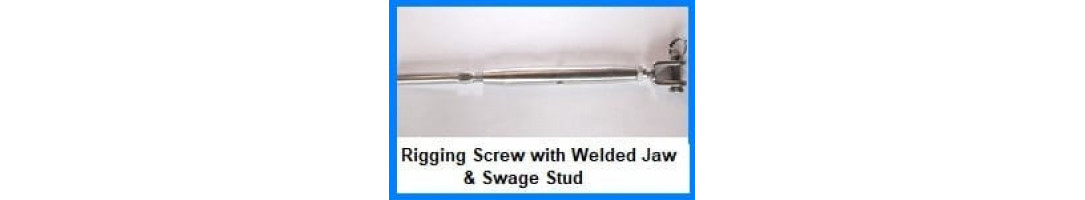

If you’re looking for a replacement rigging screw welded jaw & swage stud, then have a good look through our great selection on the Rope Services Direct website. You can also browse our swaged terminals and swageless terminals too.
These contemporary rigging screws are designed from top grade stainless steel bars. These are then buffed to create a high-shine finish.
One screw end is left-hand threaded whilst the other end has threads that twist to the right which means the tension is adjustable by turning the frame. It also allows both of the terminals to be screwed in or out at the same time without causing damage to fittings or the wire rope through twisting.
Perfectly designed for adjusting the tension of your wire rope as needed, as well as balustrade systems and other tensioning methods. Additionally, they can withstand moist air and salt so are very tough.
Rigging screw welded jaw / swage studs are very commonly used in the sailing, marine and fishing industries.
At Rope Services Direct we offer rigging screw welded jaw / swage studs in a huge spectrum of designs. To place an order, just fill in a rapid online form here or to ask for our expert advice feel free to call us on 01384 78004.
| Thread | Wire mm | Closed Length mm | Max Length mm | Jaw Opening mm | Pin Size mm |
| M4 | 2 | – | – | – | – |
| M5 | 2.5 | 155 | 215 | 6.5 | 5 |
| M6 | 3 | 175 | 245 | 7.5 | 6 |
| M6 | 4 | 185 | 255 | 7.5 | 6 |
| M8 | 4 | 200 | 275 | 11 | 8 |
| M8 | 5 | 205 | 280 | 11 | 8 |
| M10 | 5 | 230 | 320 | 12 | 9 |
| M10 | 6 | 245 | 335 | 12 | 9 |
| M12 | 6 | 285 | 400 | 14 | 12 |
| M12 | 8 | 305 | 420 | 14 | 12 |
| M14 | 7 | 315 | 435 | 15 | 12 |
| M16 | 8 | 360 | 500 | 17 | 16 |
| M16 | 10 | 370 | 510 | 17 | 16 |
| M20 | 10 | 410 | 560 | 20 | 19 |
| M20 | 12 | 430 | 580 | 23 | 19 |
