Whatever project you have in mind, if you’re looking for a long-lasting, excellently versatile shackle ideal for all weathers, a stainless steel dee shackle – screw pin from Rope Services Direct could be just what you need.

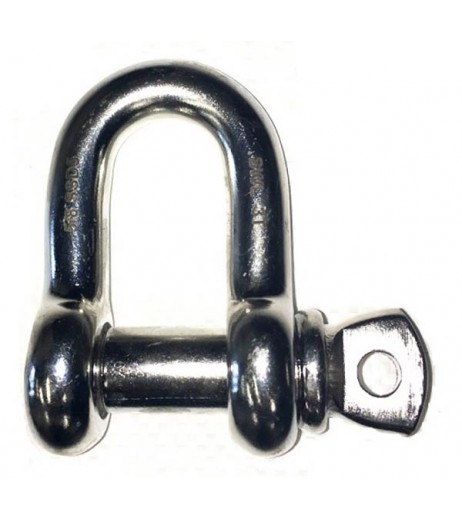

Stainless Steel Dee Shackle – Screw Pin
Our stainless screw pin shackles are available in tested or un-tested versions. The tested shackle is tested to the highest standards for their working load limit The extra-large pin is also inscribed with the safe working load for clarity and safety. Our stainless steel dee shackle – screw pin will not rust or tarnish even in the sea or salty air. Not only does this make them extremely long lasting, it means they can used for a wide variety of activities.
These dee shackles are essential within the boating and marine industry for a variety of sailing-related purposes. They are also ideal in a wide range of mechanical, lifting and leisure activities as they’re reliable and weather resistant. They’re great for use with one of our webbing products too.
Available in 4mm, 5mm, 6mm, 8mm, 10mm and 12mm 16mm and 19mm diameters.
Thanks to our large capacity warehouse in the West Midlands, Rope Services Direct can supply a phenomenal range of stainless steel dee shackle screw pin for a range of needs. Whether you wish to use it in conjunction with lifting gear, or stainless steel wire rope for towing a boat, you’re bound to find the one you need. To give us your order, all you need to do is send us your fittings enquiry using our form here. Got a question? Speak to one of our knowledgeable team today on 01384 78004. We’ll be happy to help.
TESTED
| WLL | Body mm | Pin Dia mm | Inside Length mm | Jaw Gap mm |
| 0.33T | 5 | 6 | 18 | 9 |
| 0.50T | 6 | 8 | 22 | 11 |
| 0.7T | 8 | 10 | 26 | 13 |
| 1T | 10 | 11 | 32 | 16 |
| 2T | 12 | 16 | 41 | 20 |
| 3T | 16 | 19 | 52 | 26 |
| Pin Dia mm | Bow Dia mm | Length Inside mm | Width Inside mm | Diameter eye mm |
| 4 | 4 | 14 | 8 | 8 |
| 5 | 5 | 14.5 | 10 | 10 |
| 6 | 6 | 21 | 12 | 12 |
| 8 | 8 | 28 | 16 | 16 |
| 10 | 10 | 36 | 20 | 20 |
| 12 | 12 | 44 | 24 | 24 |
| 16 | 16 | 56 | 32 | 32 |
