Searching for the perfect replacement set or individual welded swage fork? If so, then look no further than our great range online now. Why not also take a look at our other swaged terminals and swageless terminals too.

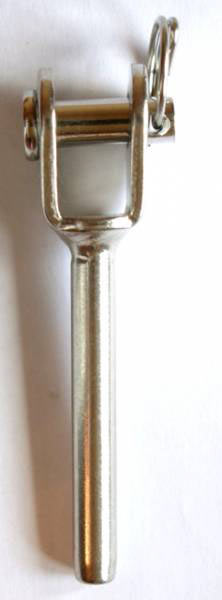

Welded Swage Fork– adaptable and functional
A welded swage fork is generally used on sailing boats, yachts and dinghies for applications such as hand rails, cable railing, and for shade sails. Our great value range of welded forks are also perfect for garden projects and landscaping as well as in sculpting and art installations. Made from enduringly resistant 316 marine grade stainless steel they’re designed to hold your wire ropes in place by sitting over any connection plates. This in turn gives one place of articulation.
Versatile and easy to adjust, seamless welded swage forks won’t succumb to pitting and corrosion by chemicals. They’re also weather resistant and built to withstand the harshest of elements.
Don’t forget that it’s important your wire ropes do not become twisted as if this happens they could become dangerously weakened. It’s also vital you choose a welded swage fork which will tightly house the full diameter of the cable you’re using, so you’ll need to measure up to check.
Go ahead and order your welded fork
From our large warehouse in the West Midlands, at Rope Services Direct we are proud to offer a professional range of welded swage forks and many other types of rope fittings in a great range of sizes and styles. To place your order, all you need to do is fill out our contact form. Need to ask a question or get some further advice? We’ll be happy to help. Simply call our expert team on 01384 78004 today.
Wire Dia mm | Pin Dia mm | Jaw Opening mm | Body Dia mm | Length to Pin Centre mm | Break Load Kg. |
2 | 5 | 7.5 | 5.5 | 58 | 800 |
3 | 5 | 7.5 | 6.35 | 65 | 800 |
4 | 5 | 7.5 | 7.5 | 71 | 800 |
5 | 6 | 9.5 | 9 | 80 | 1500 |
6 | 9.5 | 12 | 12.58 | 102 | 3800 |
7 | 12 | 14 | 14.2 | 117 | 6500 |
8 | 12 | 14 | 16 | 130 | 6500 |
10 | 14 | 18 | 17.8 | 151 | 9400 |
12 | 16 | 18 | 20 | 190 | 11200 |
14 | 19 | 25 | 25 | 221 | 15000 |
16 | 25.4 | 30 | 28 | 281 | 19000 |
