Completely fed up of searching out the distinct green pin open socket with safety bolt without breaking the bank? Rope Services Direct is here to help with everything you need – we’re ready and waiting for your order and pride ourselves on consistently low prices.

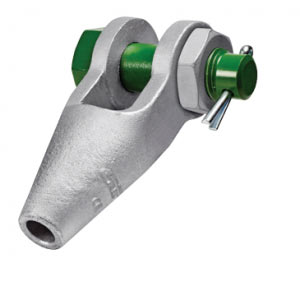

Green pin open socket with safety bolt – resilient and reliable
Used in the marine sector as well as for odd domestic jobs, animal pens, farm work and other outdoor pursuits, these parts are manufactured from high tensile steel for the ultimate in strength. They’re supplied in a galvanised finish they are extremely strong and capable of withstanding extreme temperatures. This type of green pin open socket comes with a security bolt as well as a split pin for optimum security and are designed to be used with our many different wire ropes. The green pin open socket with safety bolt comes in a wide range or sizes with minimum breaking loads ranging from 8 tonnes up to a whopping 170 tonnes.
Still not sure what you’re looking for? You’re not alone! This is a great opportunity to browse through our ferrules, wire rope sockets and other rope grips on our website too. Alternatively, feel free to contact our expert staff for information.
Get ordering now!
From our extensive warehouse and workshops in the West Midlands, we are always able to offer all sorts of fittings and parts for domestic, marine and heavy duty purposes exactly as you require them. Simply complete our rapid online enquiry form here to select your item(s) for delivery.
Needing to ask a question? Feel free to drop us a line (01384 78004). We’d be delighted to help.
Minimum Breaking Load tons | Dia Wire Rope mm | Length mm | Width mm | Width Inside mm | Dia Pin mm | Length Inside mm | Opening mm |
8 | 6-7 | 109 | 62 | 19 | 16 | 30 | 8.5 |
12 | 8-10 | 124 | 75 | 21 | 21 | 34 | 12 |
20 | 11-13 | 143 | 109 | 26 | 25 | 37 | 15 |
25 | 14 – 16 | 172 | 133 | 33 | 30 | 49 | 18 |
40 | 18 – 19 | 205 | 145 | 38 | 35 | 58 | 21 |
55 | 20 – 22 | 235 | 161 | 44 | 41 | 68 | 24 |
75 | 23 – 26 | 275 | 189 | 51 | 50 | 75 | 28 |
90 | 27 – 30 | 306 | 208 | 57 | 57 | 85 | 32 |
125 | 31 – 36 | 338 | 226 | 63 | 63 | 95 | 38 |
150 | 37 – 39 | 394 | 246 | 76 | 70 | 127 | 41 |
170 | 40 – 42 | 418 | 256 | 76 | 77 | 127 | 44 |
