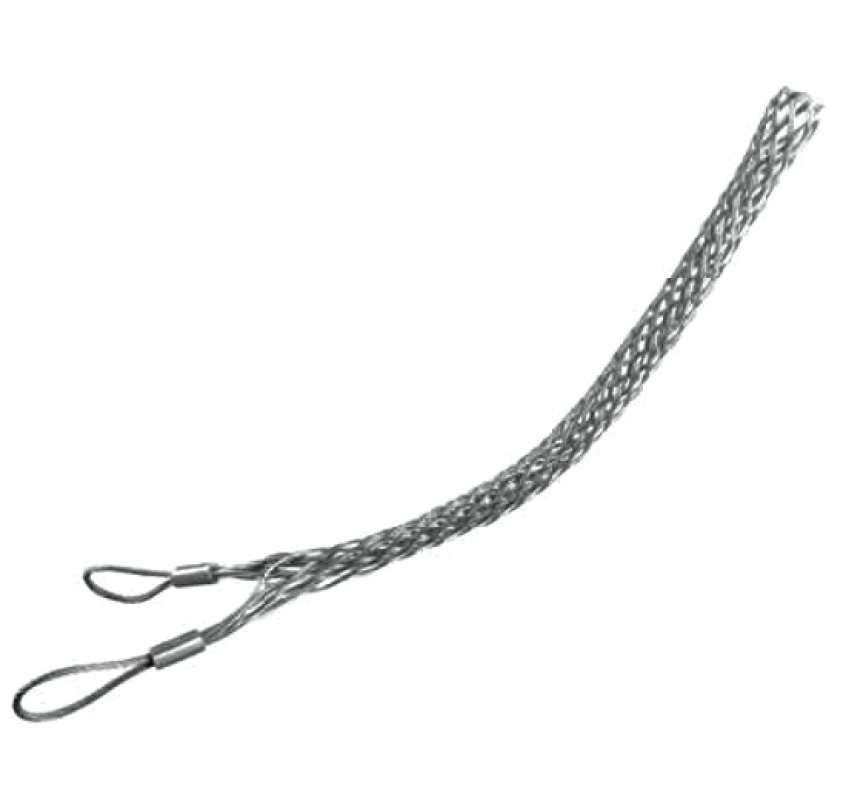

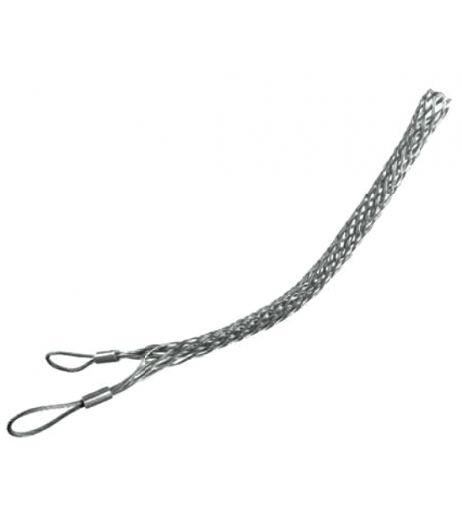

Double Eye Cable Sock
Double Eye Cable Sock
Unlike our single eye cable sock, this double eye cable sock variant has an open end. This lets the cabling protrude and even pass
through the sock completely, so that multiple grips can be applied to the same length. Read on for more on the
double eye wire rope sock. I you need a non metallic sock then head over to our double eye non metallic cable socks page
Specifications & Construction
Both single and double weave socks form part of this wider range, with the larger diameter socks with higher breaking load ratings taking advantage of this additional
interlocking of steel strands.
Galvanized double eye socks are available, as well as corrosion-resistant stainless steel equivalents. Safety is assured thanks to the varied
load limits, topping out at 7,110kg.
Place an order for the Double Eye Cable Sock
Rope Services Direct have tears of experience and can supply
double eye cable socks of the precise specifications you require. When you call our sales team on 01384 78004 or
drop them an email, they can provide quotes,
additional product info and advice on any wire rope products.
Size range (mm) |
Lattice weave |
Lattice length (mm) |
Overall length (mm) |
Approx breaking strength (kg) |
10 – 13 |
Single |
230 |
305 |
760 |
13 – 19 |
Single |
355 |
430 |
1,015 |
19 – 25 |
Single |
405 |
510 |
2,540 |
25 – 38 |
Single |
455 |
610 |
3,555 |
38 – 50 |
Double |
535 |
735 |
5,080 |
50 – 63 |
Double |
610 |
865 |
5,080 |
63 – 89 |
Double |
685 |
990 |
6,095 |
89 – 115 |
Double |
685 |
990 |
7,110 |
115- 140 |
Double |
685 |
990 |
7,110 |
